Scout   and  Scan wedge  Portable X- Ray

Scout Portable X Ray Scanner

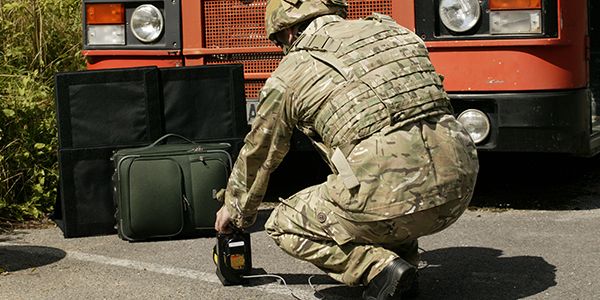

 Scout is primarily used by Military and Police EOD, IEDD and Search Teams, prisons and building security managers for mobile security investigation such as searching unattended bags and suspicious packages. It also has a multitude of other uses such as forensic work, weapons exploitation and the inspection of artifacts, artwork and industrial testing.

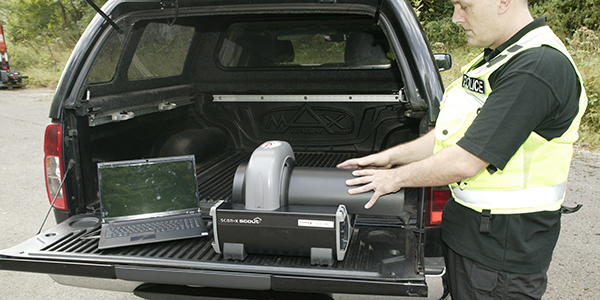

 The  Scout operates from its own in built battery and is easily set up and deployed in less than 2 minutes by one person.

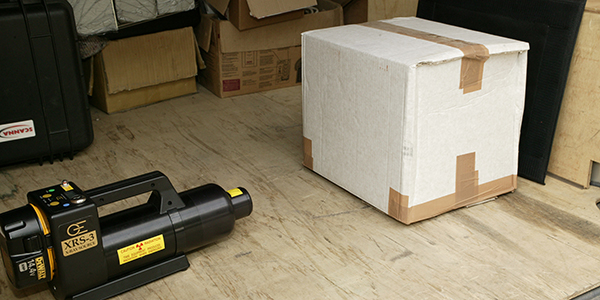

ScanX Scout Image plates are completely flat and flexible, can be erased automatically after scanning ready for immediate reuse. The x-ray plates are compatible  with any of the Golden pulsed x-ray generators, most CP generators and our Scan View Imaging software.

The x-ray plates can be used in multiples (in conjunction with our Flex ray system or quad plates) to investigate larger areas.

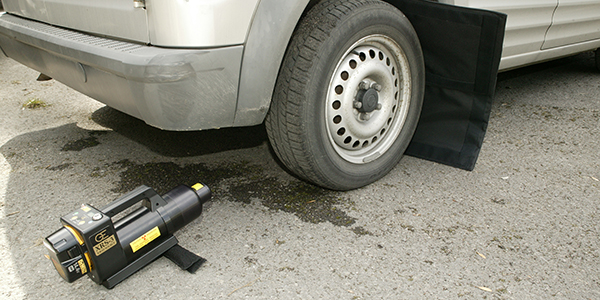

With Scan view software then stitches the individually scanned in images into a seamless large x-ray image – ideal for walls, vehicles, longer firearms and weapons.

Key features

• Portable and easy to set up and use in less than 2 minutes

• Thin Flexible Image plates in a range of sizes from 8 x 10″, 14 x 17″ up to 14 x 51″

• Custom image plates 14″ x almost any length

• Image Resolution from 130 – 50 microns and 5 line pairs minimum

• Scan and erase the reusable plates in a single pass

• Battery Powered for mobile field operations

• IED Search and Investigation

• Contraband Detection

• Forensic Investigations

• Electronic Countermeasures

• Aerospace/Automotive Inspection

• Castings

• Electronic Components

• Museum Conservation / Art studies

•

Image processing features
  Scout uses our powerful Scan View software to give you a range of image manipulation options to get all the detail out of your x-ray image. Features include Zoom, inverse Image, b/w, pseudo color, pseudo 3D, contrast enhancement, clean image, rotation, distance, measure and show gradients.

Database features
Scan View’s database software allows you to store and manage images using searchable fields.
