Portable Explosive Vapor Detector

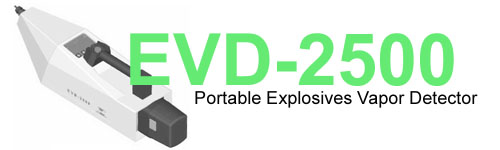

Introducing the EVD-2500 Portable Explosives Detector one the most advanced chemical detection
systems in the world, including its exclusive GC-IMS, EVD, NDS, and
Chemiluminescence's lines of trace detection.
Proven:The EVD 2500 uses the same proven sensor technology
as the advanced EVD 3000A. Improvements have resulted in
greatly increased sensitivity, ampling and battery life.


Better Value!: Less costly to budget and operate. No internal
consumables, and no radiation calibrations, licenses or
certificates to struggle with.


Sensitive and Selective: The EVD 2500 can detect even minute
traces of TNT, Dynamite, RDX, EGDN, DMNB, Nitroglycerine, including
ICAO taggants and tagged explosives (most to the lower nanogram
levels).


Portable: The EVD 2500 is self-contained, rugged and lightweight
(less than 1.5 kg). Should the user desire both vapor and
particulate detection by swiping a suspected object, however, the
preferred model will be highly proven and improved EVD 3000A.


Easy-to-Use: The EVD 2500 is ready for operation within one
minute from turn on. A simple push of a button automatically activates
the sampling and analysis mode.


The EVD 2500 is the world's lightest and most rugged portable trace
explosives detector. The EVD 2500 can detect a full range of explosives
vapors, including ICAO taggants, and is the easiest and most robust
vapor detector on the market. The unit is ready in 60 seconds, and
provides a response in 15 seconds. The latest upgrades in sample
collection and processing techniques make it one of the most
sensitive units ever.

The EVD 2500 is flexible and easy to operate, offering explosive detection
without the use of a radioactive source or external carrier gas. Vapors
are sampled directly via the sampling nozzle. The EVD 2500 starts
processing samples immediately and gives results in just seconds. All
results are indicated on the LCD and by a volum-adjustable audio alarm,
making a detection a simple one-step process. From the world's most
robust and recognized portable explosives trace detector series, the
EVD 2500, is ideal for:

SPECIFICATIONS Detection Principle
Electrochemical (Thermo-Redox) detection
No external carrier gas. No radioactive source

 Detectable Compounds
TNT, dynamite, EGDN, DMNB, nitroglycerine, ICAO taggants
and tagged explosives.

 Sampling Capabilities
Vapors by advanced sample collection and processing techniques.

 Typical Sample/Analysis Time
Sample: 5-30 seconds (user selectable based on application)
Analysis: 10 seconds

 Warm-up Time
One minute with regular use

Carrier Gas
None required (ambient air)

 Controls
Power switch
Keypad
Vapor/particulate selector
Volume control
Operational Status Indicators
LED indicator lights
4 X 20 LCD graphic display
Audible alarm (with optional earphone)

 Data Storage & Communication
1000 retrievable data records
RS-232 serial output port for remote control and monitoring
Power Supply
12 volt DC rechargeable battery pack
External battery pack
12 volt AC adapter

 Operating & Storage Temperatures
Operating: -5°C to +55°C (+23°F to +131°F)
Storage: -5°C to +65°C (+23°F to +149°F)

 Weight & Dimensions
Unit weight: less than 1.5 kg (3.3 lbs.)
Unit dimensions: (LxWxH) 51 x 26 x 39 cm / 22 x10 x 15"
Shipping Weight: 10.5 kg (26 lbs.) in protective case and boxed
Shipping Dimensions: (LxWxH) 57 x 26 x 39 cm / 22 x 10 x 15"

 Warranty
One year return to manufacturer
