Mega Arm Gates -Gates and More Gate Operator's
Lift Gates -Roll Gates -Slide Gates, Swing Gates -Gate Hinges
GATES A simple SOLUTION TO Controlling who enters your property
unattended traffic control- around your property
Lift Arm Gates
-Super Low Prices-
Note: Prices do not include freight Charges

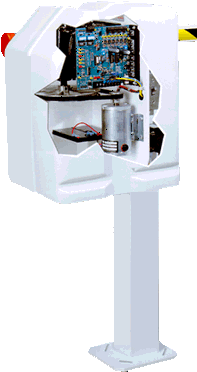

Mega Arm Lift Gate Operator 24 VDC MEGA ARM
Features - Low Voltage, battery backed up system -
· 2.5 Seconds up & 2.5 Seconds Down -·
6,000 Cycles Per Day Rating ·
Uses 12', 14' or 15' Arms (sold separately - but required, see below)
· Aluminum Frame With Plastic PE Cover
12 Foot Padded Arm SP8
12 Foot Arm w/ Yellow and Black Stripes
14 Foot Padded Arm - Yellow
15 Foot Arm w/ Stripes (Requires Counterweight)
Counterweight set MA117
Mega Sprint 24 VDC MASDCBB3
Low Voltage, battery backed up system
-· High Speed design 1 Second up & 1 Second Down
-· 10,000 Cycles Per Day Rating
-· Uses 8' Arm (sold separately - but required, see below) · Aluminum Frame With Plastic PE Cover
8 Foot Padded Arm SP8
12 Foot Arm w/ Yellow and Black Stripes MA024
14 Foot Padded Arm - Yellow MA028
15 Foot Arm w/ Stripes (Requires Counterweight) MA116
Counterweight MA117
Mega Arm Tower 24 VDC MEGA ARM Tower
Features -· Low Voltage, 2 - 12 VA batteries as backed up system -· 2.5 Second up & 2.5 Second Down -· 6,000 Cycles Per Day Rating-·
Uses 12', 14' or 15' Arms (sold separately - but required, see below)
· Full Frame and Aluminum Cover
8 Foot Padded Arm SP8
12 Foot Arm w/ Yellow and Black Stripes MA024
14 Foot Padded Arm - Yellow MA028
15 Foot Arm w/ Stripes (Requires Counterweight) MA116
Counterweight MA117
See More info on these models - click here
1601-080 Barrier Gate Operator (Arm Sold Separately ) 115 VAC 1601080
Call for Pricing
· 1/2 HP, Commercial Capacity
· Uses 12' or 14' Arm (sold separately - but required)
1601-081 Operator W/BBU (Arm Sold Separately ) 115 VAC 1601081
· 1/2 HP, Commercial Capacity
Options:
Arms and Lengths sold Separately
· Uses 12' or 14' Arm (sold separately - but required)
Wood Arm Hardware Kit 1601240
14 Foot Wood Arm 1601048
Plastic Arm Hardware Kit 1601241
12 Foot Plastic Arm 1601071
Aluminum Arm Hardware Kit 1601242
14 Foot Aluminum Arm 1601216
1602-080 Barrier Gate Operator (Arm Sold Separately ) 115 VAC
· 1 HP, Commercial / Industrial Capacity
· Uses 20' Wishbone Arm (sold separately - but required)
1602-081 Barrier Operator W/BBU (Arm Sold Separately ) 115 VAC
· 1 HP, Commercial / Industrial Capacity
· Uses 20' Wishbone Arm (sold separately - but required)
20 Foot Wooden Wishbone Arm 1602040
Accessories for DK Barrier Operators:
Reversing Edge, 6 f t, Mounts On Bottom Of Arm
Articulating Wood Arm Kit, For Low Ceilings
Articulating Plastic Arm Kit, For Low Ceilings
Heater Kit, use in Freezing Temperature Areas
Fan Kit, use in High Heat/Humidity Areas
Options for DK Operators:
Foam cover for aluminum arm
Single Channel Plug-In Loop Detector
2-Channel Plug-In Loop Detector
3-Button Control (Open-Close) 1
Hy-Security Strong Arm Gate Models
StrongArm 14F (HTG-320-2)
3/4 HP, Up to 14' Single/Wishbone Arm Com Cap (Arm Extra) Multi HTG3202
StrongArm 20F (HTG-320-3)
3/4 HP, Up to 20' Single/Wishbone Arm Com Cap (Arm Extra) Multi HTG3203
StrongArm 28F (HTG-320-6)
3/4 HP, Up to 28' Single/Wishbone Arm Com Cap (Arm Extra) Multi HTG3206
StrongArm 36F (HTG-320-8)
3/4 HP, Up to 36' Single/Wishbone Arm Com Cap (Arm Extra) Multi HTG3208
VOLTAGE OPTIONS
·Available in 110/208/230 1ph, or 208/230/460 3ph
·Available UPS Versions that include battery back-up
Arm Options:
1"x 6"x 14ft., Wood Single Arm AMITB014
20 ft., Aluminum Wishbone Arm AMITB020A
28 ft., Aluminum/Fiberglass Wishbone Arm AMITB028AFY
36 ft., Aluminum/Fiberglass Wishbone Arm AMITB036AFY
Barrier Gate Operator B604 115 VAC 1048752K
· 24VDC Operation
· 3 Second open time
· Residential Duty
· 10 foot arm standard, OR optional 13 foot arm maximum
· Internal Battery Backup
· Uses bi-directional torsion spring, no adjustment necessary
Barrier Gate Operator 620ST 230 VAC 620ST
· Hydraulic Operation 70% duty cycle
· 16 foot arm maximum SOLD SEPARATELY
· Electronic Deceleration for Opening and Closing cycle
· Compression Spring Balanced
BG770 115 VAC BG7705011
· 1/2 Hp, Commercial Cap., Uses 10' or 12' Arm (Sold Separately )
BG790 115 VAC BG7905011
· 1/2 Hp, Commercial Capacity , Uses 24' Wishbone Arm (Included)
· Available in Multiple Voltage/ Phases
· When ordering indicate part number to be M or S if the unit is to be a Master/Slave unit
Magnetic Automation
MIB 10 (High Speed Barrier) 115 VAC
· 115 V, 400 Watts, .6 - 3.0 Sec Adjustable Operation
· Max Boom Length is 10'
NOTE: Arms are sold Separately
MIB 30 115 VAC MIB30
· 115 V, 120 Watts, 1.4 sec. Operation
· Dual Loop Detectors included
NOTE: Arms are sold Separately
MBE 35 (Economy Barrier) 115 VAC MBE35
· 115 V, 65 Watts, 2.3 sec. Open / 2.8 sec. Close
· Max Boom Length is 12'
NOTE: Arms are sold Separately
MBE 50 (Economy Barrier) 115 VAC MBE50
· 115 V, 65 Watts, 4.6 sec. Open / 4.9 sec. Close
· Max Boom Length is 15'
NOTE: Arms are sold Separately Universal arms work as well
Note: Prices for accessories and parts will be higher if ordered without Gate operators
