Portable X-Ray Detection Equipment


 Portable Explosive Detection systems

Where Peace Of Mind Begins in



Feelsafer.com

Scan-track digital portable x-ray system for checking unattended bags and suspicious packages

standard Scan-track portable x-ray unit in its carry case with various  Portable  x ray  gernerators option.

scan-track is a multiple application portable digital x-ray unit used by police, military, EOD, customs, law enforcement agencies, prisons and building security managers for security checking unattended bags and suspicious packages.

scan-track is easily set up and deployed in minutes by one person and can be configured to suit different environments.
it comes with a choice of x-ray sources, adjustable exposure settings, different size ICUs and has both wireless and
ROV capabilities. unit can be buggerized for military applications.

scan-track's powerful image enhancement software allows fast evaluation and identification of hard-to-detect objects

scan-track offers a wide range of Image Processing Features including:

Zoom, Inverse Image, B/w, Pseudo Color, Pseudo 3D, Contrast Enhancement, Clean Image, Rotation, Distance, Measure and Show Gradients

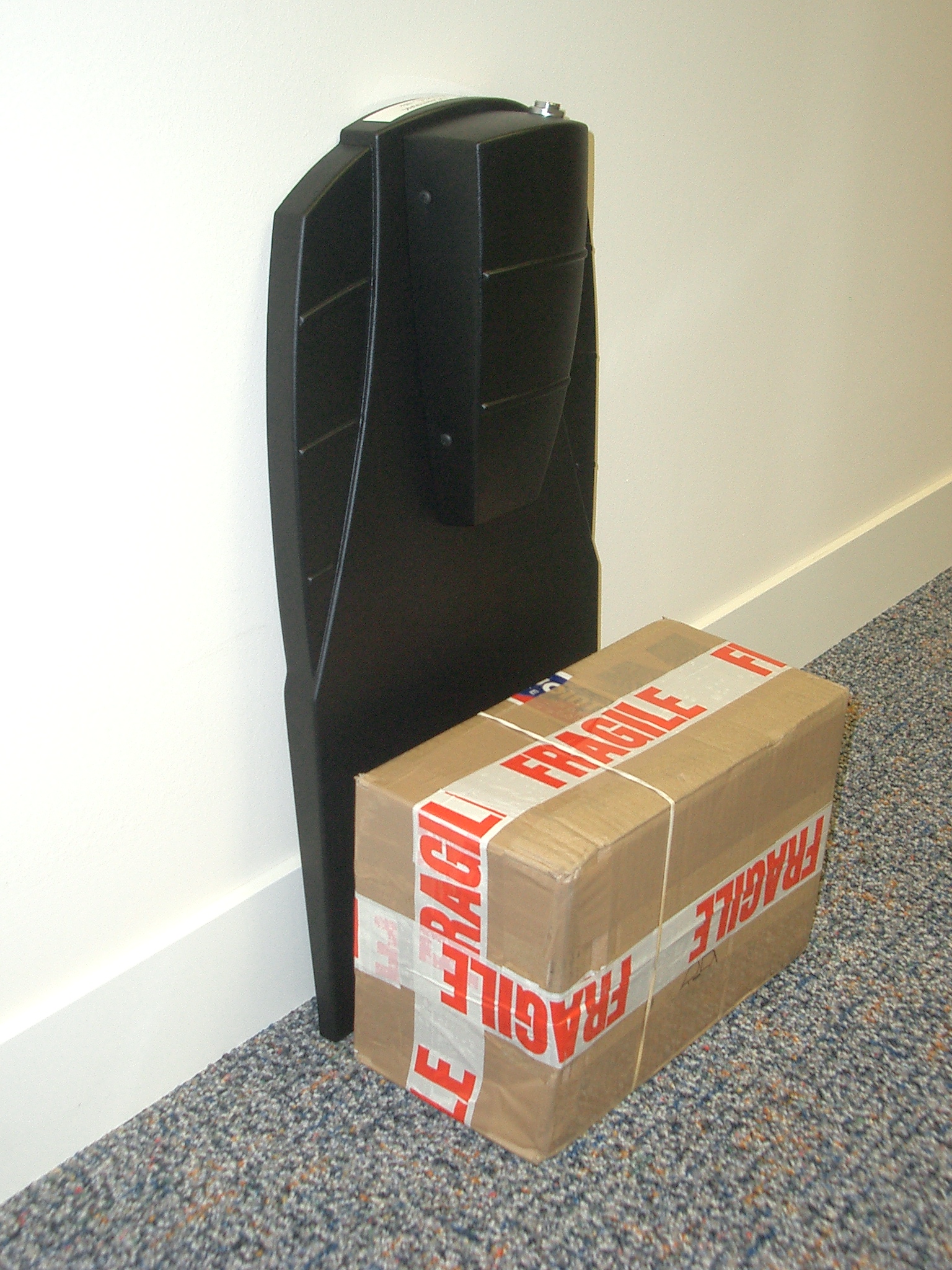

scan-track in operation

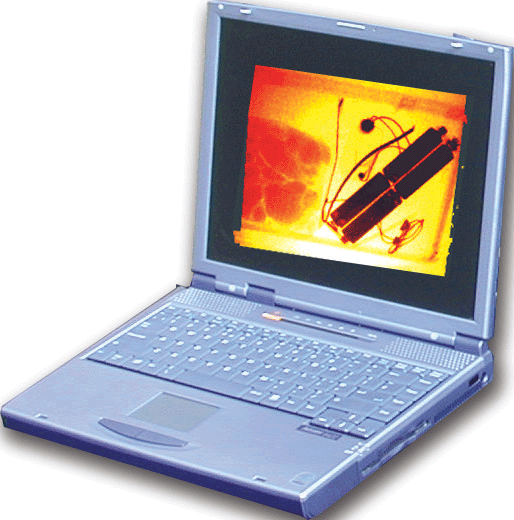

image viewed on laptop

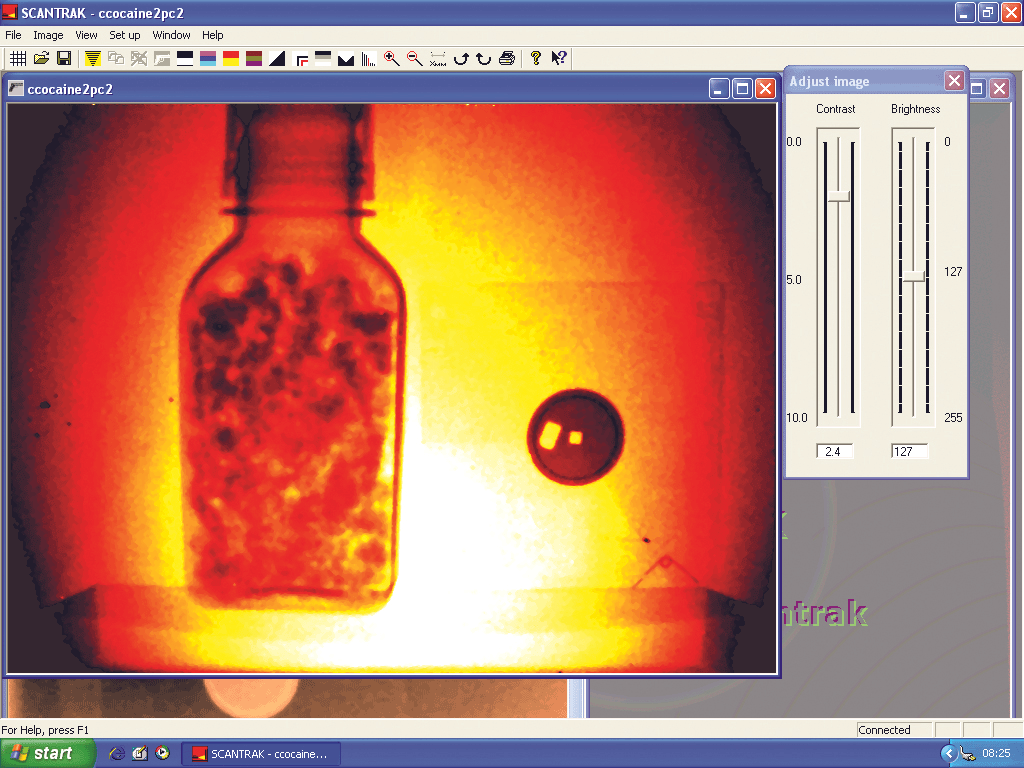

  narcotics detection using scan-track

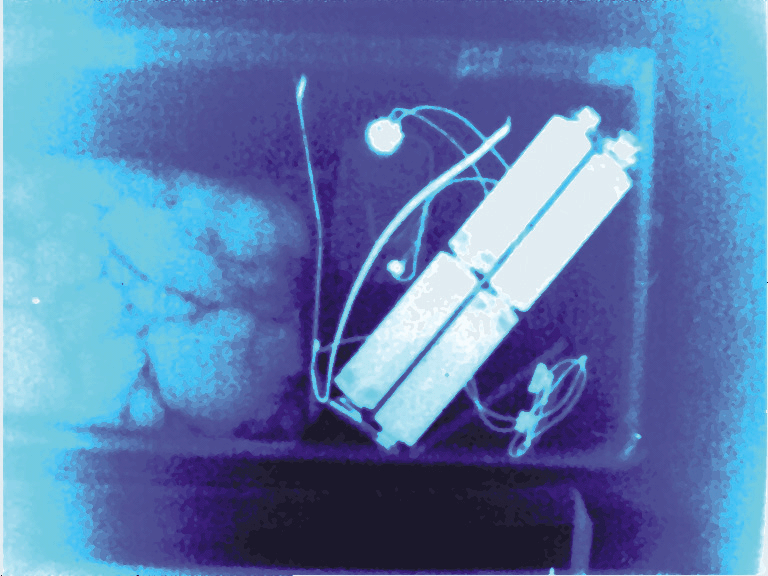

  image of explosive device



scan-track has multi-lingual options in addition to online help and quick start guides.

scan-track's database software allows you to store over 32,000 images on hard disc or CD. Live and stored images can be exported by email or across a network via built in modem. A range of annotation tools allow you to insert text, notes and highlight suspect areas.

scan-track is now available with a range of flat imaging panels including the new scan wedge imager

which replace the standard 8 x 10" camera box.





FEATURES:
search and examine suspicious packages or unattended bags on the spot

portable and easy to set up and use in 5 minutes
image analysis includes zoom, reverse black and white, pseudo-color, pseudo 3D and measure, show gradients,
rotation, distance, contrast enhancement and more
works with most portable x-ray sources including golden Generators

XR150,  XR200, XRS-3
image print and email. archive in excess of 32,000  images  on pc or CD
or annotation tools

full database management tools

standard system
 XR200 (golden) or lightweight XR150 (golden) x-ray source

options
applications

Portable X-ray equipment is available for vehicle examination.

equipment can work in that application for spot checking vehicles, but not full examination of a large volume of vehicles.

Attached are photos and images of some vehicle inspections applications.

Requires  Operator to use several imaging plates in this application and stitch the individual images together to get a single larger image



 Each image plate takes 50 seconds to process so it can be a time consuming process if there are very many image plates.

Cost of a basic system with two 8”x17” image plates is $38,000.

 Each image plate is $1152 each requires a minimum of 2 image plates however more can be used

see examples below









Scan-track minimum specifications




300kV maximum energy  Penetration: 25 mm steel
5.5 kgs with battery

battery life 4500 pulses on one charge



Delivery time can vary

Standard Pricing with XR150 Generator $25,500.00

Standard Pricing with XR200 Generator $27,500.00

Standard Pricing with XR3 Generator $32,000.00



Optional Wireless capabilities $ 3500

Options for Scan Track

export freight and packaging $ 850.to $950

 in the US To Be Determined



Phone 915-240-4747

 Call or email us for a pricing request
