Welcome to





Where The World Can Find  The World's Most Rugged Guard Tour Data Collector

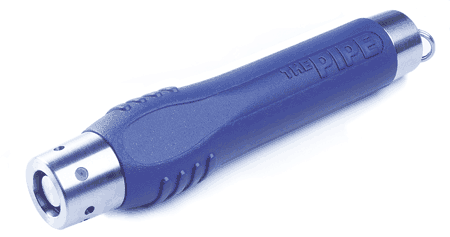

THE PIPE was designed for the most rugged use and the toughest environments.
Many readers used in competitive guard tour systems were designed for general use. THE PIPE was specifically designed for guard tour use. It is built to withstand the heavy use and – occasionally – intentional abuse specific to the security industry.


In developing THE PIPE, we focused our research and development on determining how components are affected by the stresses of use and abuse, such as shock and temperature. For example, our engineers analyzed how batteries and battery wires fail when dropped and designed a custom battery assembly to provide greater shock resistance.

 What Makes THE PIPE So Durable?
The answer is in the details.


First, THE PIPE is made of corrosion resistant #304 stainless steel alloy. This gives it many times the strength of plastic or aluminum. The case is sealed, making it tamper-resistant and waterproof.
All of THE PIPE's electronics are embedded in epoxy resin for additional protection against shock and moisture.


Batteries are encased in a special rubber sleeve and all battery connections are welded – there are no spring loaded terminals to deform and fail. Even the ring at the end of THE PIPE is a special heavy-duty split ring.


The Best Warranty in the Industry
All of these details really do make a difference, and they make it possible for us to offer a three-year hardware warranty and a one-year battery warranty.


Repair costs are a major expense with many competitive guard tour systems. If you're considering a guard tour system, find out why most offer only a ninety-day or one-year hardware warranty and no battery warranty!

 THE PIPE

There are many reasons why The PIPE is the best choice for your guard tour solution. Here are just a few.

  Feature

  Advantage
  Case made of #304 stainless steel   Stronger than aluminum or plastic
  No moving parts   Spring-loaded parts are less durable and can fail
  Electronics encased in epoxy   Protects internal components from physical shock
  Spot-welded battery connections   No spring-loaded terminals which can fail
  Protective molded battery sleeve   Additional shock protection for batteries
  Waterproof   Stands up to the harshest weather conditions
  Molded grip   Only product that ergonomically fits your hand
  Lithium battery   No battery recharging to forget or fail
  Large battery capacity   No need to replace battery each year
  Secondary battery   Your valuable data protected for up to ten years
  Full one-year battery warranty   Only product to offer a battery warranty
  Full three-year hardware warranty   The best warranty in the industry

Fast, Easy Data Transfer

The Direct Downloader transfers your tour data from The PIPE to the PC, where it is processed by the Guard1 Plus software.

Our downloaders transfer data at 115,200 baud – faster than any competitive product. A full PIPE – over 4800 records – can be downloaded in under ten seconds. There's no waiting for data to transfer before you can put The PIPE back into service.

Plug and Play

Our downloaders are the only ones in the guard tour industry to support Plug and Play.

Plug and Play simplifies installation and ensures that the downloader will work properly in conjunction with other Windows devices.

Built to Last

Like The PIPE, the Direct Downloader is sturdily built. It includes a weighted base for stabilty.

Direct Downloader Features





About Touch Buttons

THE PIPE reads durable metal touch buttons. Each button has a unique ID number. Officers, tour stations, and incident codes can all be recorded using touch buttons.

Buttons are attractive, durable, and unobtrusive, making them equally suitable for corporate headquarters or industrial environments. They are waterproof, and resist tampering and abuse, making them ideal for outdoor applications beause they will not corrode or degrade.



We offer several mounting options for touch buttons including plastic mounts and adhesive foam "dots".

We have worked with prisons, public institutions and others to provide secure mounting solutions. If you have problems with abuse or vandalism, or need extra-secure mounting for tour stations,

Mobile Downloading Solutions

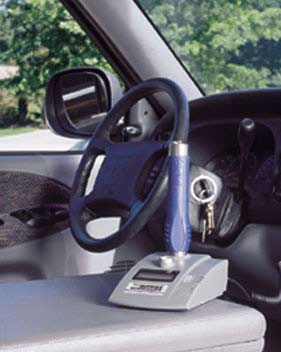

The Mobile Downloader is ideal for supervisory or mobile patrols, where it is necessary to gather data from PIPEs at multiple locations. Since it is powered from a wall jack or automobile cigarette lighter, a supervisor or officer can visit multiple locations and download data from The PIPE at each location. This allows The PIPE to be returned to service immediately.

The Mobile Downloader stores the gathered data until it can be returned to a central office, where the accumulated data is transferred to a PC and processed by the Guard1 Plus software.


The Mobile Downloader stores up to 7200 button reads. A lithium battery provides protection against data loss for up to ten years.

Rugged Design for Mobile Use
The Mobile Downloader is sturdily built for use in the field. It includes a weighted base for stability.

Mobile Downloader Features
Powered from a wall jack or automobile cigarette lighter
Automatically detects and downloads The PIPE
Stores up to 7200 button reads
Secondary battery preserves data for up to ten years
Downloads directly to PC serial port
Downloading port accepts The PIPE
Pushbutton displays amount of data stored
Sturdy construction
Weighted base – will not tip over
