Wall Pass THROUGH-PASS THRU Troughs

The Easiest way to Pass Items between Walls

All Stainless steel Pass Thru mounts on counter top, in wall or window opening.

Wall Pass-Thru Trough is the perfect way to complete transactions when security is a concern.

The Hopper is simple to operate...

The clerk effortlessly pushes outward on the handle and the Hopper pivots towards the customer to start the transaction.

Then the clerk gently pulls inward and is able to retrieve the items placed inside the Hopper.

The perfect Pass-Thru for convenience stores, gas stations, financial institutions, police stations, jails or detention centers.

Hopper pivots outward for customer access, then in opposite direction for operator access.

Only one moving part allows virtually maintenance free service.

Pass Thru  is equipped with weather strip for exterior use.

Pass Thru Wall Transfer Units are available With or Without a flange

which means non flange units have to be mounted by securing with screws from the inside to a counter top

 flange models come welded on one side and are adjustable with second flange to wall thickness



Standard models provide Class I LEVEL  bullet resistant protection

  after level 1  after level 2

level 1 bullet Resistant  protects up to  a  9mm full metal copper jacket with lead core

level 2  Bullet Resistant  protects up to a   .357 metal jacket with lead soft point

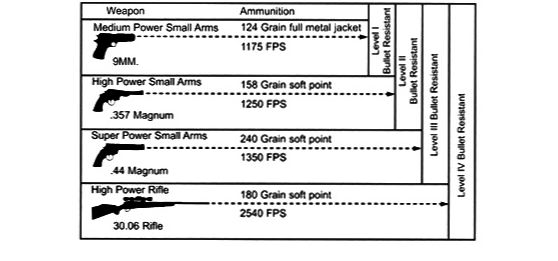

see chart below

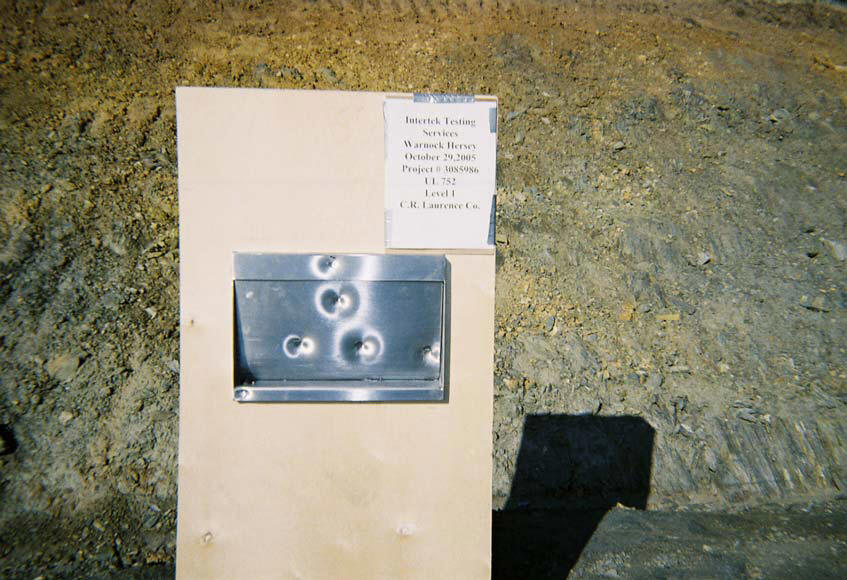

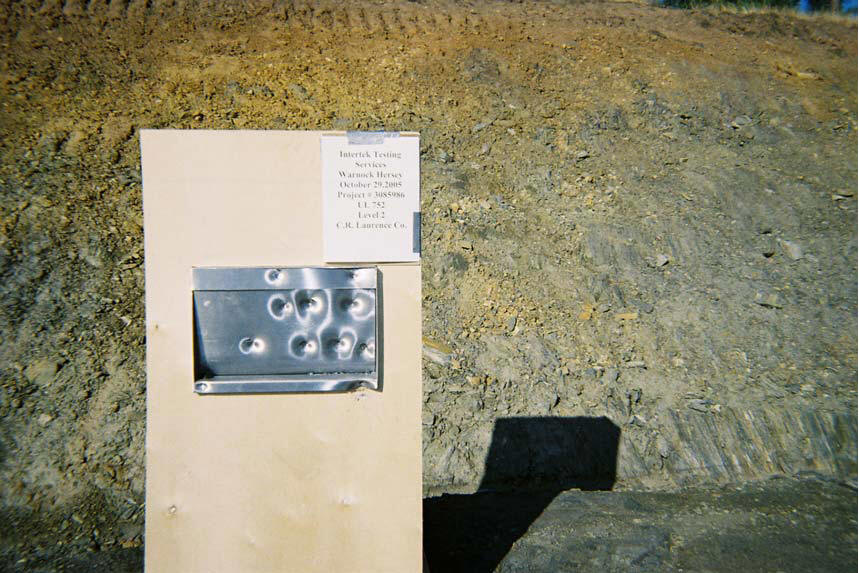

The security pass thru counter top door assembly IN TESTS Meet  Level 1 and 2 Standards



Flange Units-contain a molding that fits around the face of this unit  this mounts flush with the INTERIOR or EXTERIOR WALL





All stainless steel Pass ThruS easily mount  on counter top, thru walls or in window opening.

 Pass-Thru  is the perfect way to complete transactions when security is a concern.

The trough shaped Hopper is simple to operate.

 The clerk effortlessly pushes outward on the handle and the Hopper pivots towards the customer to start the transaction.



Then the clerk gently pulls inward and is able to retrieve the items placed inside the Hopper.

The perfect Pass-Thru for convenience stores, gas stations, financial institutions, police stations, jails or detention centers.

the trough shaped Hopper pivots outward for customer access, then in opposite direction for operator access.

Only one moving part allows virtually maintenance free service.

Pass Thru  is equipped with weather strip for exterior use.

Standard models provide Class I bullet resistant protection.



Pass Thru Wall Transfer Units are available  ( With or Without a flange ) DEPENDING ON YOUR APPLICATION

which means non flange units have to be mounted by securing with screws from the inside

 flange models are welded  with flanges on one side and adjustable to the wall depth on opposite  side

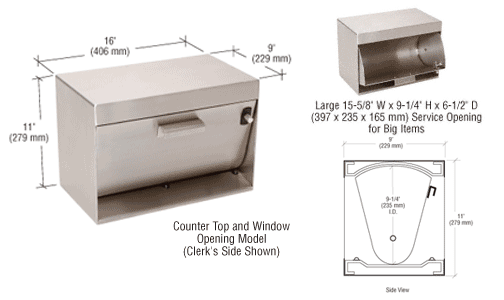

 Flange Model  Pass thru  Units

A  Great Price  for Level II Protection

  16 x11  Level one bullet resistance 16" wide x  9"deep x  11 " high $ 1,720.00  no flange model

 18 x 9  Pass Thru Wall  Level one bullet resistance (18 wide x 9" deep x  12)  high $ 1855 NON flange model

   DOESN'T INCLUDE FREIGHT Estimated  $50 to 95

Sales Tax may apply in some states



Color

Brushed Stainless

Width:

16 in. (406 mm)

Depth:

9 in. (22 mm)

Height:

11 in. (279 mm)

Ship Via:

Can Ship UPS

Minimum Order:

1 Each

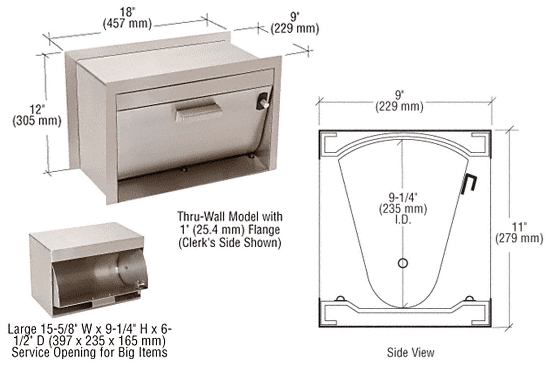

Wall Pass Thru with Flange

All stainless steel Pass Hopper mounts on counter top, in wall or window opening.  Hopper pivots outward for customer access, then in opposite direction for operator access.  Only one moving part allows virtually maintenance free service.  Pass Hopper is equipped with weather strip for exterior use.  Standard models provide Level I bullet resistant protection.  Level III protection is an extra option. Pass Hopper is available with stationary exterior flange and loose adjustable flange for rear side on all models.

Level I  Bullet Resistant

Model  FSPH1   LEVEL 1   Level one bullet resistance w/o flange  $ call

16" wide x  7.75"deep x  10-1/8 " high

Model  FSPH1- F  Level one bullet resistance with flange  $ call

16" wide or across  x  7.75"deep x  10-1/8 " high



 LEVEL 3 BULLET RESISTANCE

Model   FSPH1- L3   Level III bullet resistance w/o flange  $ call

FSPH1-F -L3 Level III bullet resistance with flange  $ call

16" wide or across  x  7 .75 "deep x  10.125 " high

Call today   915-240-4747

This is the Largest Pass Hopper provides ample capacity for large bulky items.

 Equipped with stainless steel handle and round turn latch

DIMENSIONS 16" wide x  12"deep x  16 " high

Pricing Level 1 BULLET RESISTANT RATED

Model   FSPH2 -L1   Level I bullet resistance WITH flange  $ call

Model   FSPH2 -L1   Level I bullet resistance w/o flange  $ call

DIMENSIONS 16" wide or across  x  12"deep x  16 " high or tall



LEVEL 3 BULLET RESISTANT RATED

DIMENSIONS 16" wide or across  x  12"deep x  16 " high or tall

Model   FSPH2 -L3   Level 3 bullet resistance WITH flange  $ call

Model   FSPH2 -L3   Level 3 bullet resistance w/o flange  $ call



DIMENSIONS 16" wide or across  x  12"deep x  16 " high or tall



Bullet Resistant





MADE FROM  12 GAGE STEEL PLATE WITH 16 GA. FLANGES

LEVEL 1 RATED  Bullet Resistant  Wall Transfer Pass  thru

   Model   FSPH3 L1 WITHOUT FLANGE  Level  I bullet resistance 16" wide x  11 1/16"HI x  9" high $ call

   Model   FSPH3 L1   WITH FLANGE Level  I bullet resistance 16" wide x  11 1/16"HI x  9" high $call

DIMENSIONS 16" wide or across  x  9" deep x  11.0625 " high or tall



LEVEL 3 RATED  Bullet Resistant  Wall  Pass Thru  Box

  Model   FSPH3 L3  WITH FLANGE Level III bullet resistance 16" wide x  11 1/16"HI x  9" high

   Model   FSPH3 L3  WITH FLANGE Level III bullet resistance 16" wide x  11 1/16"HI x  9" high



DIMENSIONS 16" wide or across  x  9" deep x  11.0625 " high or tall



Estimated FREIGHT CHARGES are approx  $  50.00 to $ 75

 FREIGHT  SHIPPED IN THE US common carrier

Sales tax  may apply in some states



 THE SIMPLE SOLUTION TO  PASSING AND EXCHANGING

 exchanging moneybags, gallon containers such as milk or anti-freeze, cartons of cigarettes  as well as two-liter size beverages.
