From Bullet Resistant to Stainless Steel

We have The Protection You'll need

From Cash Checking Houses to payroll rooms, to movie theaters to security drawers, to prisons, We have the security exchange window right for your needs.

Deal Tray,

Pass Hopper

Safety Server

Bell Pass Through

Package Receiver

Deal Drawer -Transaction Drawer

Night Window-with pass hopper

Night Window-with Deal Tray

Night Window-with Deal Tray-window speaker

Exchange Window with lazy Susan

Exchange Window with Slide Tray

Vision Exchange Window with deal tray

Exchange window with Hinged Panel

Ticket Window

Counter Top Drawers

Talk through port

Stainless Steel Shelf with one way Bullet Ricochet

Tinted

Bullet Resistant

Speak Through speaker or vents

Package size variations:

From movie tickets to cash to envelopes to overnight boxes.

Sizes are built to accommodate your needs

Options include : bullet resistant, level 1,2,3

Exterior Service Window fits into rough wall opening and clamps onto wall. Adjustable extruded aluminum frame fits walls 5" to 8 ¹/₂'' thick. Window clamps in place with bolts positioned through back frame into threaded section of front frame. Glazing is sealed into the frame for weather-tight installation. Stainless steel shelf has writing surface in front of built-in deal tray. Deal tray closure helps prevent drafts. Natural voice transmission is provided by the circular draft-free talk through.

Frame available in clear or dark bronze anodized aluminum.

Night Window with Pass Hopper fits into wall opening of 16 ¹/₄" x 32 ¹/₄". Aluminum frame has clear or dark bronze anodized finish. Unit includes PHE-1 stainless steel Pass Hopper, weather-stripped for exterior use and our 6-FR stainless steel draft free talk through. Window has 1 ¹/₄" thick Class I bullet resistant acrylic glazing.

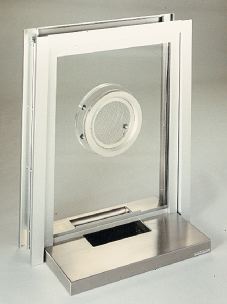

Compact Night Window fits into 16 ¹/₄" x 24 ¹/₄" wall opening. Glazing is 1 ¹/₄" thick acrylic with Class I bullet resistant protection and aluminum frame in clear or dark bronze anodized finish. Window unit has No. 6-FR stainless steel draft free talk through and stainless steel deal tray with hinged draft closure.

Overall size is 36" wide x 36" high.

Other sizes available.

Exchange window with natural voice transmission has hinged panel which swings up for transfer of larger items. Stainless steel shelf with integral deal tray fits below window. Hinged panel is 15" wide X 6" high.

Note: GLASS IS NOT AVAILABLE for Exchange Window with Hinged Panel. Specify Class I - 1 ¹/₄" thick acrylic or Class III - 1 ¹/₄" thick Lexgard.

  28" Wide Bullet Resistant Satin Anodized Interior Window with Surround Sound and Shelf with Deal Tray

DW5200P
  DW Series Manual Deluxe Sliding Service Window XOX Painted with Screen

Electric &  fully automatic- features two settings –pencil  line laser beam activated open

or  toggle button controlled open –close  with  -no self latch for lock.

Due to slide option a talk thru is a separate item.

All stainless steel Pass Thru  mounts on counter top, in wall or window opening. Hopper pivots outward for customer access, then in opposite direction for operator access. Only one moving part allows virtually maintenance free service. Pass Thru is equipped with weather-strip for exterior use. Standard models provide Class I bullet resistant protection. Class III protection is an extra option.

Pass Hopper is available with stationary exterior flange and loose adjustable flange for rear side.

Pass Hopper can handle a gallon of antifreeze, two liter beverage or bag of coins. Hopper locks with latch

Package Receiver is available with Class I and III bullet resistant protection. Clear inside dimensions: 14 ³/₄" wide x 13 ¹/₈" high x 15 ¹/₂" deep.

Package Receiver accommodates larger items for transfer. It has interlocking mechanism to allow only one door at a time to open. Front door can be locked from rear side with special locking bar. Closer is furnished on front door.

Package Receiver mounts into wall up to 11 ¹/₂" thick. Adjustable frame on interior side mounts against wall in field. Exterior flange has rain cap along top edge.

Slide Top serves both as deal tray and pass thru. Recessed deal tray in center of lid slides forward or backward beneath the center ledge for transaction of currency and small items. Bulkier items can be passed through the larger cavity below.

Exterior Lazy Susan is equipped with weather-strip for outdoor use, eliminating direct entry of outside air into the building. This unit has stainless steel sides and inner drum with a clear acrylic window for viewing of contents.

Top and bottom are bullet resistant plastic. Only one moving part-the inner drum-rotates with smooth movement. Crank handle on top turns the drum 180 degrees. Lazy Susan locks with a drop bolt through shelf into metal angle below. In locked position the stainless steel drum is turned to customer for maximum security. Unit mounts on counter top or in wall opening. Class I bullet resistant protection. Standard sizes are listed below.

LSW-CR 1512 is large enough for six pack of drinks or gallon of

Safety Server provides bullet resistant protection while holding energy loss to a minimum. It allows no direct entry of outside air into the building. Safety Server has only one moving part (the shelf) which turns both inward and outward to allow access to contents. Shelf extends approximately 15" from face of building when turned to customer.

Safety Server locks with the two adjacent acrylic doors forming an insulated barrier between outside and inside air. Unit mounts on window ledge, in wall opening or on counter top. It has clear inside height of 14 ¹/₂". Top, bottom and shelf are bullet resistant plastic. Sides are dark or clear bronze anodized aluminum. Doors are clear 1 ¹/₄" thick acrylic. Unit is weather stripped

Deal Drawer recesses in counter top along front to achieve flush appearance. Glazing (by others) sets above the flat hood portion of drawer. Full width handle across rear of drawer along with smooth solid bearing slides allows easy operation. Lexan lid stays closed when drawer is extended. Drawer unit has stainless steel construction.

Recessed deal tray with flip lid is designed for outdoor use. This stainless steel unit mounts in counter top opening below window. Slanted lid on customer's side of window helps keep inside of deal tray dry.

Downward push on rear pull opens deal tray to customer. Unit can handle items large as cigarette carton. Hole cut out size: 13" wide x 15" deep.

Stainless steel Swivel-Thru sets in transaction area of counter, centered beneath the bullet resistant window. For normal currency transactions the deal tray (lid) is locked in horizontal position by a turn latch incorporated in the knob. For larger items the deal tray is tilted upward to the lower edge of window to uncover the open drum below. After larger item is placed in open drum, deal tray is rotated in opposite direction by operator for access to drum contents. The Swivel-Thru is bullet resistant in all positions. It has the appearance of an ordinary deal tray when mounted in place, not detracting from aesthetics of counter. Unit is large enough to accommodate items such as an eight pack of drinks or large bag of coins.

CASH DRAWER

Cash Drawer has stainless steel housing with bullet resistant plastic drawer. Unit mounts in counter top along front edge. Glazing (by others) should set above the flat hood portion of drawer. As drawer slides out the stainless steel front panel pivots upward. Movement is controlled by the full width handle across rear of drawer. Lexan lid stays closed when drawer is extended. This unit is designed for long life as there are no slides to wear out.

Counter top opening size: 14 ¹/₂" wide X 17 ¹/₈" deep X 5 ³/₄" high.
Drawer extension: 9"
Inside dimensions of drawer: 12" wide x 14 ⁵/₈" deep X 3 ⁵/₈" high

Stainless steel counter top model deal tray mounts on top of counter. No cut out is required.

Deal Tray mounts below bullet resistant window to allow transfer of currency and small items.

Shelf mounts below window to allow transfer of smaller items in the built-in deal tray.
Shelf size: 12" deep x 2" high.
Deal tray size: 11" wide x 8 ¹/₄" deep X 1¹/₂" high. Shelf is 18" deep x 2" high, providing a 7 ¹/₂" deep writing surface in front of the built-in deal tray.
Deal tray section is 11 " wide X 8 ¹/₄" deep X 1 ¹/₂" high. Various widths.

TALK THRU

Round 6" diameter cast stainless steel talk thru design offers natural voice transmission with evenly spaced concentric louvres. This unit is available as interior or exterior model (specify). No. 6-D Talk Thru is adjustable for ¹/₄" to 1 ⁷/₈" thick glass. Glass thickness less than 1 ³/₁₆" requires optional spacer ring. When ordering indicate glass thickness of window. Requires 5" diameter hole

Provides Clear Communication Through an Isolation Barrier

Ruggedly Constructed and Tamper-Resistant

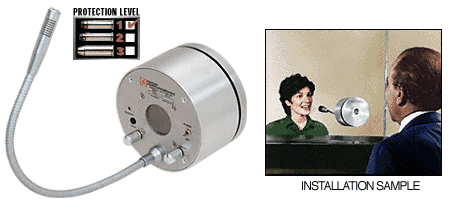

Counter-Top Two-Way Electronic Communicator is the unit of choice when it is impractical to cut a hole through a glass isolation barrier. The unit is automatically activated when the clerk speaks. Talk and listen volumes are adjustable by the clerk. Units are available in Standard or Deluxe Models with satin anodized finish

We have the right door for your security needs

Level 1 Left or  RIGHT Hand Swing Bullet Resistant Door With Vision Window

Suitable for Interior or Exterior Use

Available With or Without Bullet Resistant Vision Windows
